DIY Guide for Lower Ball Joints
Disclaimer – I have been working on cars all my life but I am not a professional mechanic. I am attaching these instructions as a resource for those who are capable of doing the replacement job and would like to see photos of the procedures. Attempt the job only if you are qualified and always use appropriate safety measures.
Step 1:
Jack the car up and put it on safety stands. Remove the wheel.
Step 2:

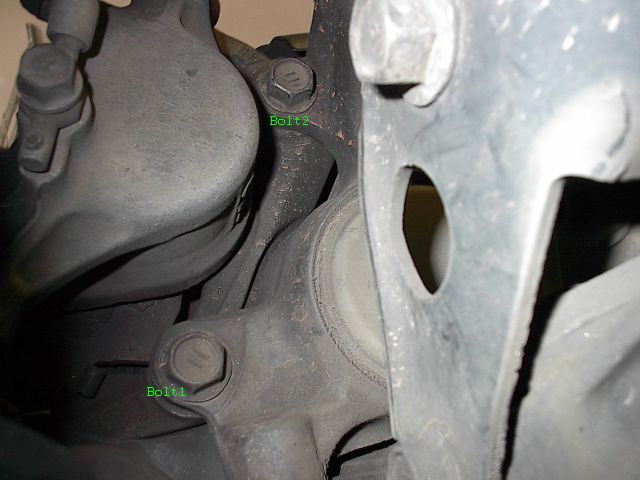

Remove the two caliper bolts and secure the caliper either behind the strut or from a coat hanger off the spring. Do NOT let the caliper hang from the brake line and do NOT let the caliper rest on the steering tie rod (it will be moving around later). Below is a picture of the two caliper bolts.
Step 1:
Jack the car up and put it on safety stands. Remove the wheel.
Step 2:
Remove the two caliper bolts and secure the caliper either behind the strut or from a coat hanger off the spring. Do NOT let the caliper hang from the brake line and do NOT let the caliper rest on the steering tie rod (it will be moving around later). Below is a picture of the two caliper bolts.
The following users liked this post:
joetee (11-11-22)
#3

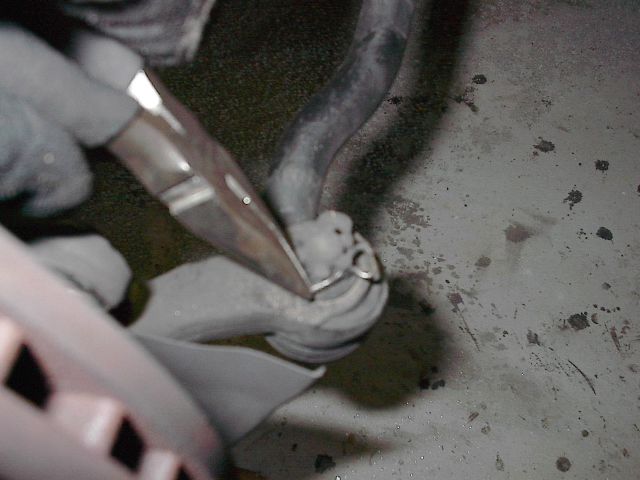

Step 4:
If you do not already have one, purchase a tie-rod separator. I got this one from AutoZone and it was $9.99. The specs are that it has a 1 1/16th (27mm) opening and 2 1/8th (54mm) travel. I do NOT recommend using the fork type separators as they will almost always tear the rubber boot.
If you do not already have one, purchase a tie-rod separator. I got this one from AutoZone and it was $9.99. The specs are that it has a 1 1/16th (27mm) opening and 2 1/8th (54mm) travel. I do NOT recommend using the fork type separators as they will almost always tear the rubber boot.
Trending Topics
#8

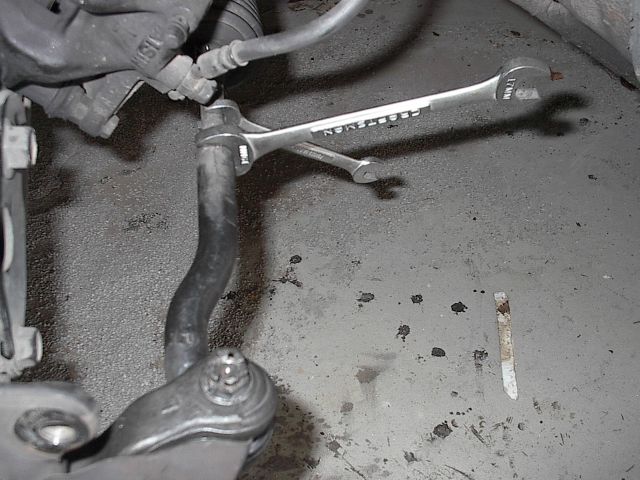

Step 9:

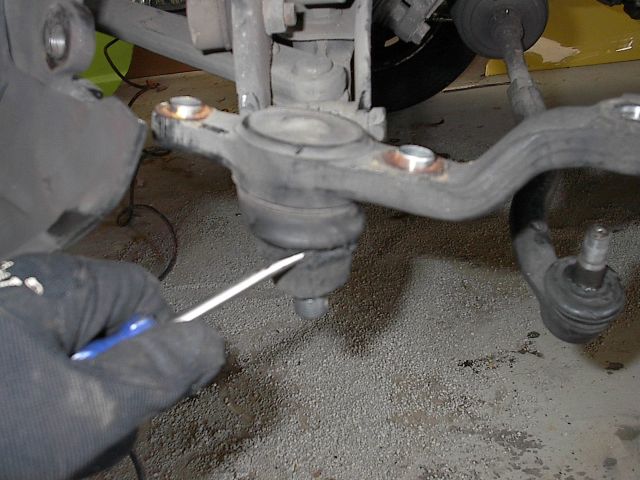

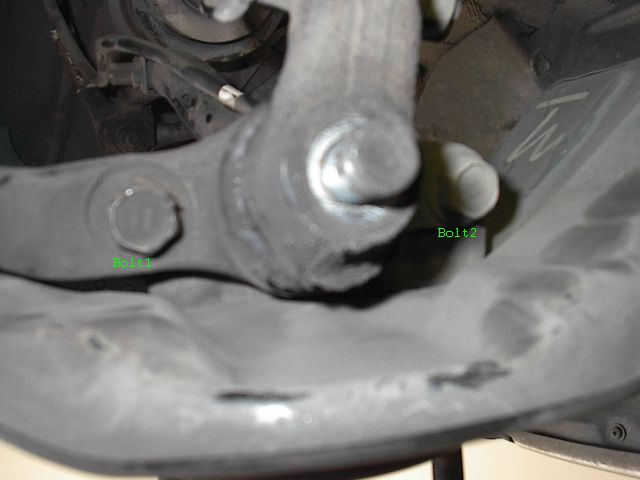

With both these bolts removed, the knuckle will easily lift off the ball joint. In order to secure the tie-rod puller to the ball joint to separate it, you will need to use a flat head screw driver to pry the rubber boot away from the lower control arm. This will allow you to slide the arms of the puller onto the ball joint for removal.
With both these bolts removed, the knuckle will easily lift off the ball joint. In order to secure the tie-rod puller to the ball joint to separate it, you will need to use a flat head screw driver to pry the rubber boot away from the lower control arm. This will allow you to slide the arms of the puller onto the ball joint for removal.
The following users liked this post:
joetee (11-11-22)
#9
Step 10:

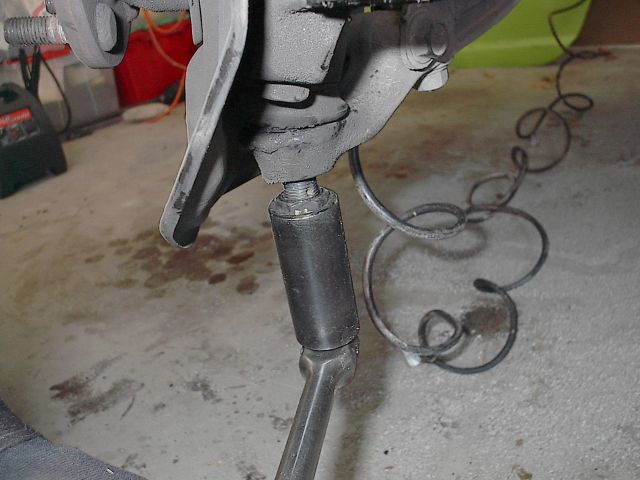

With the rubber boot loosened, slide the puller on. With the puller in place, slowly screw down the pin until the ball joint assembly separates from the lower control arm.
With the rubber boot loosened, slide the puller on. With the puller in place, slowly screw down the pin until the ball joint assembly separates from the lower control arm.
#11
Step 12:
Assembly is the reverse of the removal. When you are re-inserting the tie rods, the bolt will sometimes rotate so it is hard to get pressure on it. If this is the case, use the tie rod puller in the reverse manner and try to use a little pressure to seat the bolt back into end.
Lower Bolts to hold new ball joint to knuckle: 83ft/lb torque
Lower Ball Joint: 112 ft/lb torque
Tie Rod End: 48ft/lb torque
Caliper Bolts: 87ft/lb torque

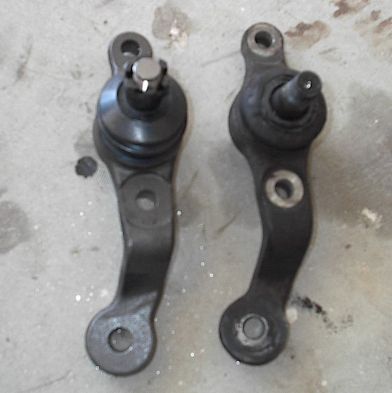

Here are the before and after Ball Joints:
Assembly is the reverse of the removal. When you are re-inserting the tie rods, the bolt will sometimes rotate so it is hard to get pressure on it. If this is the case, use the tie rod puller in the reverse manner and try to use a little pressure to seat the bolt back into end.
Lower Bolts to hold new ball joint to knuckle: 83ft/lb torque
Lower Ball Joint: 112 ft/lb torque
Tie Rod End: 48ft/lb torque
Caliper Bolts: 87ft/lb torque
Here are the before and after Ball Joints:
