IS300 CD009 350z Transmission Swap
#1
Driver School Candidate
Thread Starter
Join Date: Jan 2013
Location: USA
Posts: 45
Likes: 0
Received 0 Likes
on
0 Posts
![Default](https://www.clublexus.com/forums/images/icons/icon1.gif)
350Z 6 SPEED CD009 TRANSMISSION WILL NOT FIT A IS300 CHASSIS. CHECK POST #41 FOR PICS AND REASONS WHY.
*original posting*
Parts are starting to arrive for my swap, so i figured id share some info. This thread is open to innovators and speculators.
Same thing going on in a sc300 thread: https://www.clublexus.com/forums/per...s-adapter.html
So far I have a 2006 G35 tranny CD009 with 87K ($520 shipped)
![Name: 2013-02-04_18-22-36_257_zps566504bc.jpg
Views: 20114
Size: 57.3 KB](https://www.clublexus.com/forums/attachments/performance/429223d1501343866-is300-cd009-350z-transmission-swap-2013-02-04_18-22-36_257_zps566504bc.jpg)
![Name: 2013-02-04_18-23-30_293_zps05f01292.jpg
Views: 13863
Size: 55.5 KB](https://www.clublexus.com/forums/attachments/performance/429224d1501343866-is300-cd009-350z-transmission-swap-2013-02-04_18-23-30_293_zps05f01292.jpg)
My IS is a 05 manual non lsd.
*original posting*
Parts are starting to arrive for my swap, so i figured id share some info. This thread is open to innovators and speculators.
Same thing going on in a sc300 thread: https://www.clublexus.com/forums/per...s-adapter.html
So far I have a 2006 G35 tranny CD009 with 87K ($520 shipped)
![Name: 2013-02-04_18-22-36_257_zps566504bc.jpg
Views: 20114
Size: 57.3 KB](https://www.clublexus.com/forums/attachments/performance/429223d1501343866-is300-cd009-350z-transmission-swap-2013-02-04_18-22-36_257_zps566504bc.jpg)
![Name: 2013-02-04_18-23-30_293_zps05f01292.jpg
Views: 13863
Size: 55.5 KB](https://www.clublexus.com/forums/attachments/performance/429224d1501343866-is300-cd009-350z-transmission-swap-2013-02-04_18-23-30_293_zps05f01292.jpg)
My IS is a 05 manual non lsd.
Last edited by airfed; 02-24-13 at 11:32 AM.
#3
Driver School Candidate
Thread Starter
Join Date: Jan 2013
Location: USA
Posts: 45
Likes: 0
Received 0 Likes
on
0 Posts
![Default](https://www.clublexus.com/forums/images/icons/icon1.gif)
R154 isnt even a option cause it feels like junk. I can buy 10 used cd009 for the price of 1 used v161 and have triple/dual synchros with 1000hp+ capabilities. Not saying its better than the v161 but it is a really nice transmission. Im going all collins parts, he has it all except transmission mount. http://collinsadapters.com/index.php...es/toyota.html
I have a few parts in for boost but this transmission needs to go in first.
Youtube: AIRFED318 is where the vids and such will be.
I have a few parts in for boost but this transmission needs to go in first.
Youtube: AIRFED318 is where the vids and such will be.
#5
Driver School Candidate
Thread Starter
Join Date: Jan 2013
Location: USA
Posts: 45
Likes: 0
Received 0 Likes
on
0 Posts
![Default](https://www.clublexus.com/forums/images/icons/icon1.gif)
The first thing I want to do is make this shifter go directly on the first U joint with a swivel out of the transmission instead of the extension U joint. Which in theory would fix some of the major problem with this swap of the shifter location being 5" further back than the w55. I saw in a 350z thread that the first U joint can be punched out and removed so we shall see today. Ille post pics.
Last edited by airfed; 02-11-13 at 02:11 PM.
#6
Driver School Candidate
Thread Starter
Join Date: Jan 2013
Location: USA
Posts: 45
Likes: 0
Received 0 Likes
on
0 Posts
![Default](https://www.clublexus.com/forums/images/icons/icon1.gif)
I just pulled a few measurements and things are getting tighter! The normal shortened shifter setup wont even make the stab on a IS300. The first u joint is going to have to be the connection point for a modified shifter that curves enough to make it near the 30" mark. My other findings is the width of the CD009 is a little over 9" wide at 22" back from the bell housing level with the shifter bracket and 10" wide at 2.5 inches below that point. I couldnt accurately measure the is300 in that area, but it doesn't look that wide, so im pausing everything and gonna do a test fit with the tranny and adapter plate only. ![](https://www.freesmileys.org/smileys/smiley-fc/popcorn.gif)
CD009
![](http://i1207.photobucket.com/albums/bb464/airfed_teg/2013-02-11_16-39-06_560_zps898a404a.jpg)
IS300 Interior
![Name: 2013-02-11_17-03-05_772_zps9ba88713.jpg
Views: 14297
Size: 69.4 KB](https://www.clublexus.com/forums/attachments/performance/429216d1501343848-is300-cd009-350z-transmission-swap-2013-02-11_17-03-05_772_zps9ba88713.jpg)
IS300 Stock Transmission Mount
![Name: 2013-02-11_17-08-49_879_zpsb3ff617a.jpg
Views: 15317
Size: 55.7 KB](https://www.clublexus.com/forums/attachments/performance/429217d1501343848-is300-cd009-350z-transmission-swap-2013-02-11_17-08-49_879_zpsb3ff617a.jpg)
Mount starts at 22" and ends at 25", and should cover enough area for an adapter bracket.
![Name: 2013-02-11_17-10-07_759_zpsc31f286a.jpg
Views: 13194
Size: 57.6 KB](https://www.clublexus.com/forums/attachments/performance/429218d1501343848-is300-cd009-350z-transmission-swap-2013-02-11_17-10-07_759_zpsc31f286a.jpg)
From mount to mounting location is just under 3", but that means nothing until I can measure what it is on the cd009 with it mounted in.
![](https://www.freesmileys.org/smileys/smiley-fc/popcorn.gif)
CD009
![](http://i1207.photobucket.com/albums/bb464/airfed_teg/2013-02-11_16-39-06_560_zps898a404a.jpg)
IS300 Interior
![Name: 2013-02-11_17-03-05_772_zps9ba88713.jpg
Views: 14297
Size: 69.4 KB](https://www.clublexus.com/forums/attachments/performance/429216d1501343848-is300-cd009-350z-transmission-swap-2013-02-11_17-03-05_772_zps9ba88713.jpg)
IS300 Stock Transmission Mount
![Name: 2013-02-11_17-08-49_879_zpsb3ff617a.jpg
Views: 15317
Size: 55.7 KB](https://www.clublexus.com/forums/attachments/performance/429217d1501343848-is300-cd009-350z-transmission-swap-2013-02-11_17-08-49_879_zpsb3ff617a.jpg)
Mount starts at 22" and ends at 25", and should cover enough area for an adapter bracket.
![Name: 2013-02-11_17-10-07_759_zpsc31f286a.jpg
Views: 13194
Size: 57.6 KB](https://www.clublexus.com/forums/attachments/performance/429218d1501343848-is300-cd009-350z-transmission-swap-2013-02-11_17-10-07_759_zpsc31f286a.jpg)

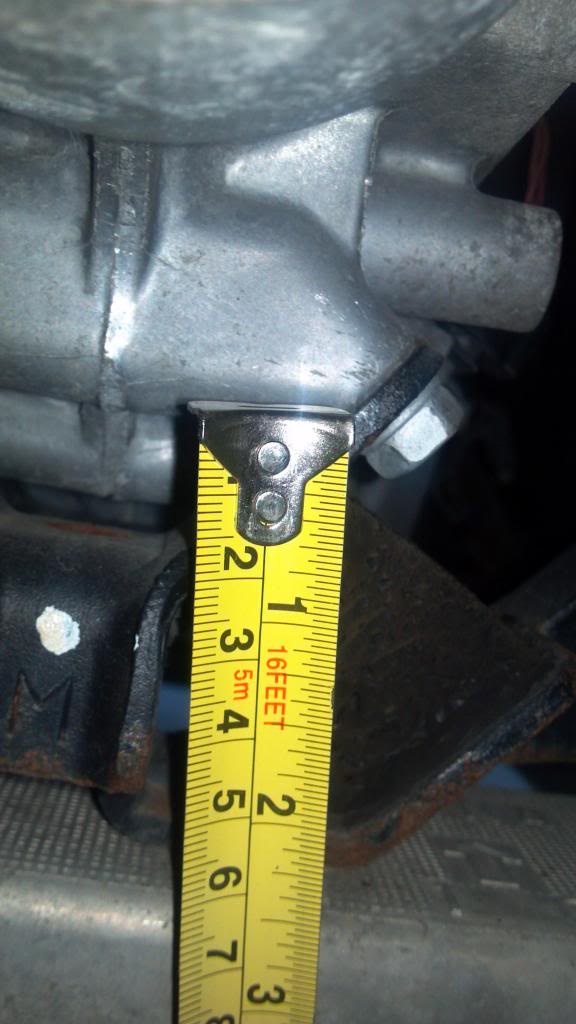

From mount to mounting location is just under 3", but that means nothing until I can measure what it is on the cd009 with it mounted in.
![Name: 2013-02-11_17-13-18_733_zpsffebac74.jpg
Views: 13033
Size: 62.7 KB](https://www.clublexus.com/forums/attachments/performance/429219d1501343848-is300-cd009-350z-transmission-swap-2013-02-11_17-13-18_733_zpsffebac74.jpg)
#7
Driver School Candidate
Thread Starter
Join Date: Jan 2013
Location: USA
Posts: 45
Likes: 0
Received 0 Likes
on
0 Posts
![Default](https://www.clublexus.com/forums/images/icons/icon1.gif)

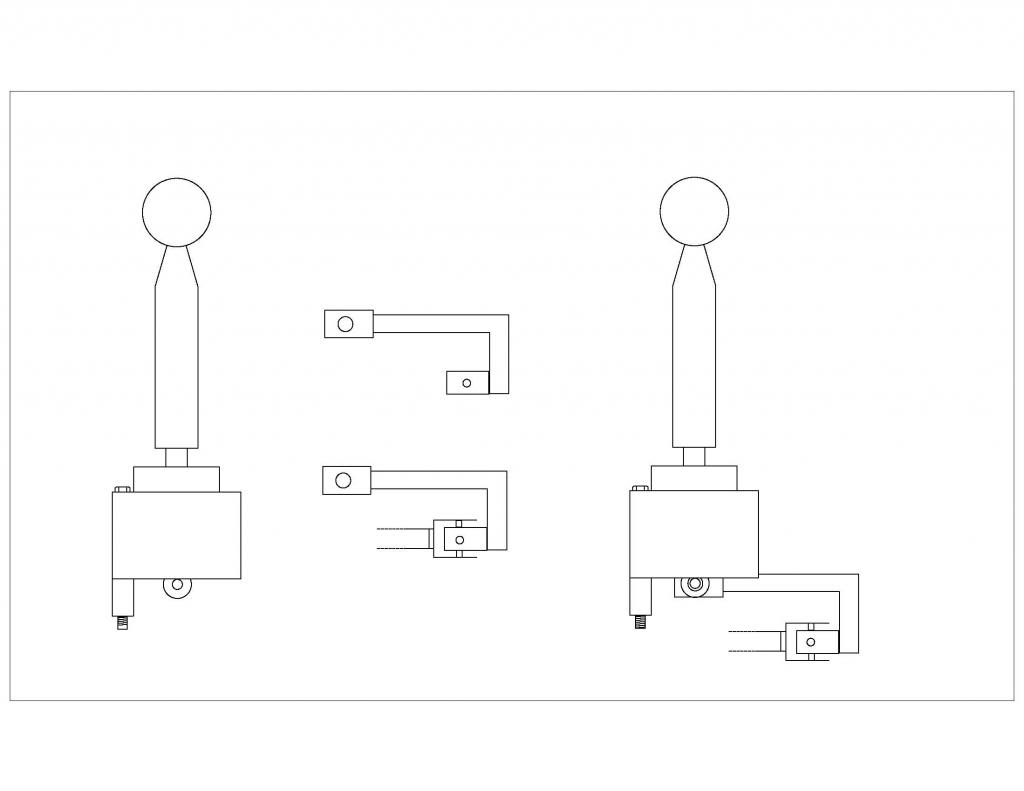

Heres what I think will make the 30" mark. I will be able to more accurately draft it when I do the test fit and pull more measurements. This will adapter will sit higher than the stock is300 but theres plenty of room going up.
![Name: cd009shifter_zps9a8be3ef.jpg
Views: 13030
Size: 21.8 KB](https://www.clublexus.com/forums/attachments/performance/429213d1501343848-is300-cd009-350z-transmission-swap-cd009shifter_zps9a8be3ef.jpg)
Trending Topics
#9
Driver School Candidate
Thread Starter
Join Date: Jan 2013
Location: USA
Posts: 45
Likes: 0
Received 0 Likes
on
0 Posts
![Default](https://www.clublexus.com/forums/images/icons/icon1.gif)
Yep. The physical window is 28"-32". 30" should put you in the stock location. There is no way the current adapters will go @ 34.5", I like my cupholder.
Last edited by airfed; 02-12-13 at 10:10 AM.
#11
Driver School Candidate
Thread Starter
Join Date: Jan 2013
Location: USA
Posts: 45
Likes: 0
Received 0 Likes
on
0 Posts
#12
#13
Driver School Candidate
Thread Starter
Join Date: Jan 2013
Location: USA
Posts: 45
Likes: 0
Received 0 Likes
on
0 Posts
![Default](https://www.clublexus.com/forums/images/icons/icon1.gif)
Now im waiting patiently on collins to send the adapter for the test fit. Friends are on standby to make this go as easy as possible. My clutch cancel switch from a 04 Tacoma came in yesterday so I guess ille put that in today and post pics.
#14
Driver School Candidate
Thread Starter
Join Date: Jan 2013
Location: USA
Posts: 45
Likes: 0
Received 0 Likes
on
0 Posts
![Default](https://www.clublexus.com/forums/images/icons/icon1.gif)
Got the clutch switch in. Pics from another thread suck so I posted these.
04 Tacoma switch.
![Name: 2013-02-13_16-27-14_38_zpse5e08caa.jpg
Views: 12788
Size: 48.4 KB](https://www.clublexus.com/forums/attachments/performance/429203d1501343821-is300-cd009-350z-transmission-swap-2013-02-13_16-27-14_38_zpse5e08caa.jpg)
Sides shaved off to fit.
![Name: 2013-02-13_16-31-49_357_zps72632c57.jpg
Views: 13081
Size: 42.6 KB](https://www.clublexus.com/forums/attachments/performance/429204d1501343821-is300-cd009-350z-transmission-swap-2013-02-13_16-31-49_357_zps72632c57.jpg)
TOP two prongs soldered to 2' of wire.
![Name: 2013-02-13_16-35-30_803_zps96536c89.jpg
Views: 12888
Size: 79.5 KB](https://www.clublexus.com/forums/attachments/performance/429205d1501343821-is300-cd009-350z-transmission-swap-2013-02-13_16-35-30_803_zps96536c89.jpg)
IS clutch switch.
![Name: 2013-02-13_16-42-40_78_zps622d9659.jpg
Views: 13011
Size: 54.4 KB](https://www.clublexus.com/forums/attachments/performance/429206d1501343821-is300-cd009-350z-transmission-swap-2013-02-13_16-42-40_78_zps622d9659.jpg)
Unplugged
![Name: 2013-02-13_16-43-19_739_zpsb3d8880b.jpg
Views: 13085
Size: 57.4 KB](https://www.clublexus.com/forums/attachments/performance/429207d1501343821-is300-cd009-350z-transmission-swap-2013-02-13_16-43-19_739_zpsb3d8880b.jpg)
Wires shoved all the way inside the back of oem clip and taped for easy install and removal....wires need to be soldered blah blah blah.
![Name: 2013-02-13_17-10-21_589_zps3cfc42da.jpg
Views: 12919
Size: 53.2 KB](https://www.clublexus.com/forums/attachments/performance/429208d1501343821-is300-cd009-350z-transmission-swap-2013-02-13_17-10-21_589_zps3cfc42da.jpg)
Zip tied and out of the way.
![Name: 2013-02-13_16-58-51_895_zps2acf7ad5.jpg
Views: 12926
Size: 58.8 KB](https://www.clublexus.com/forums/attachments/performance/429209d1501343821-is300-cd009-350z-transmission-swap-2013-02-13_16-58-51_895_zps2acf7ad5.jpg)
Switch fitted in a previously blank spot.
04 Tacoma switch.
![Name: 2013-02-13_16-27-14_38_zpse5e08caa.jpg
Views: 12788
Size: 48.4 KB](https://www.clublexus.com/forums/attachments/performance/429203d1501343821-is300-cd009-350z-transmission-swap-2013-02-13_16-27-14_38_zpse5e08caa.jpg)
Sides shaved off to fit.
![Name: 2013-02-13_16-31-49_357_zps72632c57.jpg
Views: 13081
Size: 42.6 KB](https://www.clublexus.com/forums/attachments/performance/429204d1501343821-is300-cd009-350z-transmission-swap-2013-02-13_16-31-49_357_zps72632c57.jpg)
TOP two prongs soldered to 2' of wire.
![Name: 2013-02-13_16-35-30_803_zps96536c89.jpg
Views: 12888
Size: 79.5 KB](https://www.clublexus.com/forums/attachments/performance/429205d1501343821-is300-cd009-350z-transmission-swap-2013-02-13_16-35-30_803_zps96536c89.jpg)
IS clutch switch.
![Name: 2013-02-13_16-42-40_78_zps622d9659.jpg
Views: 13011
Size: 54.4 KB](https://www.clublexus.com/forums/attachments/performance/429206d1501343821-is300-cd009-350z-transmission-swap-2013-02-13_16-42-40_78_zps622d9659.jpg)
Unplugged
![Name: 2013-02-13_16-43-19_739_zpsb3d8880b.jpg
Views: 13085
Size: 57.4 KB](https://www.clublexus.com/forums/attachments/performance/429207d1501343821-is300-cd009-350z-transmission-swap-2013-02-13_16-43-19_739_zpsb3d8880b.jpg)
Wires shoved all the way inside the back of oem clip and taped for easy install and removal....wires need to be soldered blah blah blah.
![Name: 2013-02-13_17-10-21_589_zps3cfc42da.jpg
Views: 12919
Size: 53.2 KB](https://www.clublexus.com/forums/attachments/performance/429208d1501343821-is300-cd009-350z-transmission-swap-2013-02-13_17-10-21_589_zps3cfc42da.jpg)
Zip tied and out of the way.
![Name: 2013-02-13_16-58-51_895_zps2acf7ad5.jpg
Views: 12926
Size: 58.8 KB](https://www.clublexus.com/forums/attachments/performance/429209d1501343821-is300-cd009-350z-transmission-swap-2013-02-13_16-58-51_895_zps2acf7ad5.jpg)

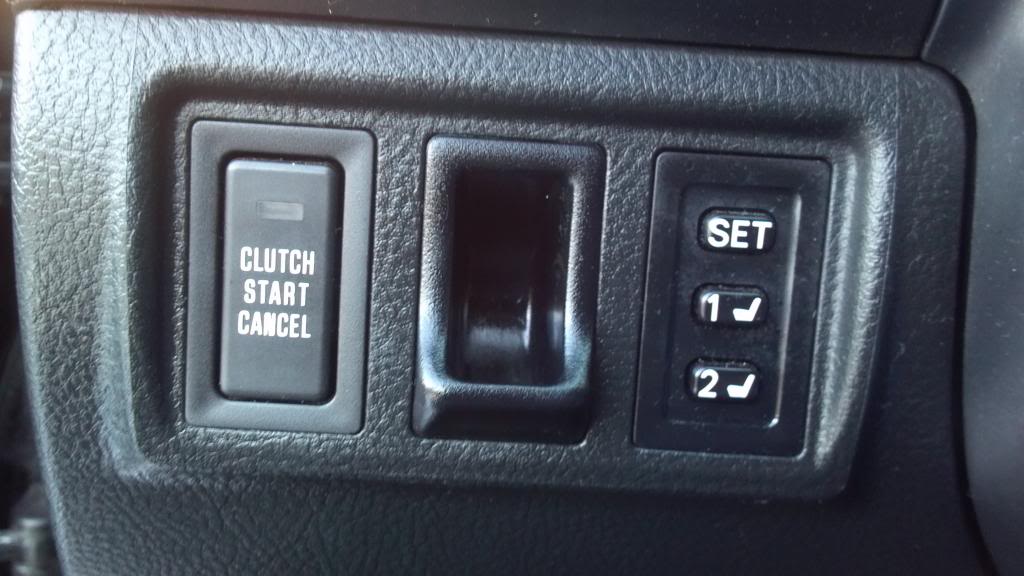

Switch fitted in a previously blank spot.
![Name: 2013-02-13_16-47-16_116_zps6cc2ffa2.jpg
Views: 13188
Size: 77.8 KB](https://www.clublexus.com/forums/attachments/performance/429210d1501343821-is300-cd009-350z-transmission-swap-2013-02-13_16-47-16_116_zps6cc2ffa2.jpg)
