Mini bullhorns on the black bull (lower air intake modification)
This afternoon, the skies were clear (but not now, so perhaps no track tonight to test), but I modified as promised the lower air intake. It is an advanced version of this,
https://www.clublexus.com/forums/sho...d.php?t=289830
Comparing the two you will notice no 90 degree turn at mid level, but instead an angled 45 degree PVC piece to better ram the air upward. In addition, you will notice 2 mini bullhorns attached to the front. This involved some cutting.
Attached Thumbnails
Last edited by Lexmex; 08-04-07 at 05:08 PM .
08-04-07, 04:58 PM
Super Moderator
Thread Starter
Join Date: Apr 2004
Location: Miami, Florida
Posts: 17,246

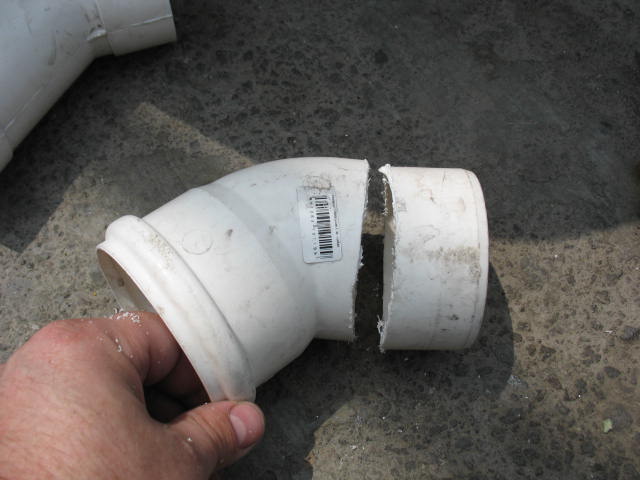

We started by cutting the angled 45 degree piece a bit so that the right side wouldn't jut down to far.
Attached Thumbnails
08-04-07, 04:59 PM
Super Moderator
Thread Starter
Join Date: Apr 2004
Location: Miami, Florida
Posts: 17,246

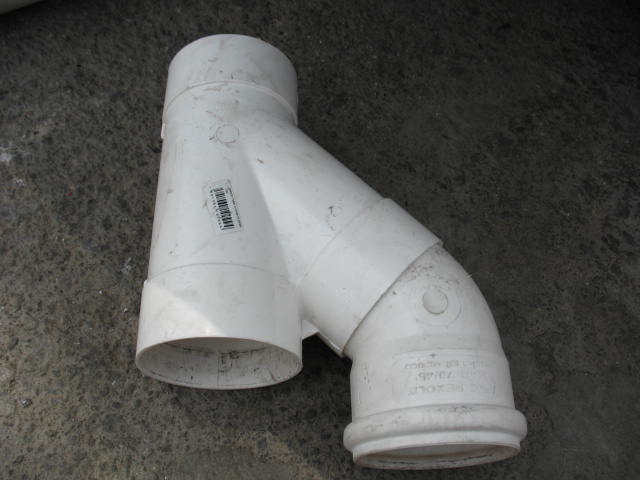

We then hooked it into this piece that also has a 45 degree angle.
Attached Thumbnails
08-04-07, 05:01 PM
Super Moderator
Thread Starter
Join Date: Apr 2004
Location: Miami, Florida
Posts: 17,246

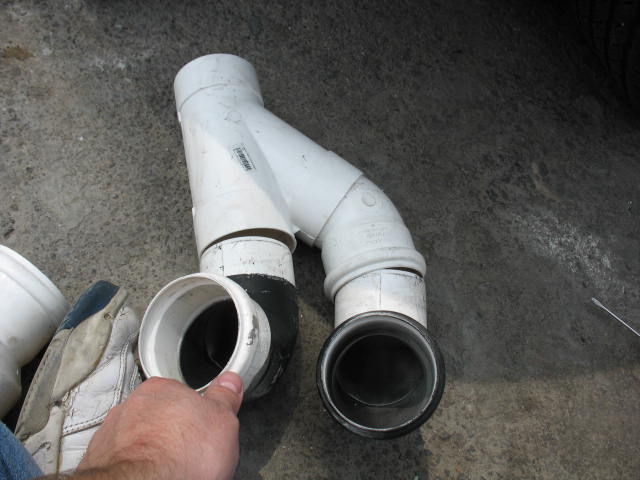

We then hooked two 45 degree angle half-u plastic pieces on each side.
Attached Thumbnails
08-04-07, 05:02 PM
Super Moderator
Thread Starter
Join Date: Apr 2004
Location: Miami, Florida
Posts: 17,246

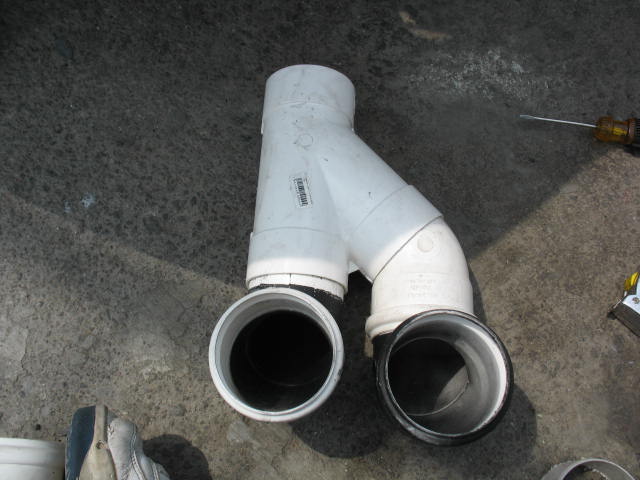

Now quite equal in terms of how far they hang down, but after I tested them underneath they more or less fit right.
Attached Thumbnails
08-04-07, 05:03 PM
Super Moderator
Thread Starter
Join Date: Apr 2004
Location: Miami, Florida
Posts: 17,246

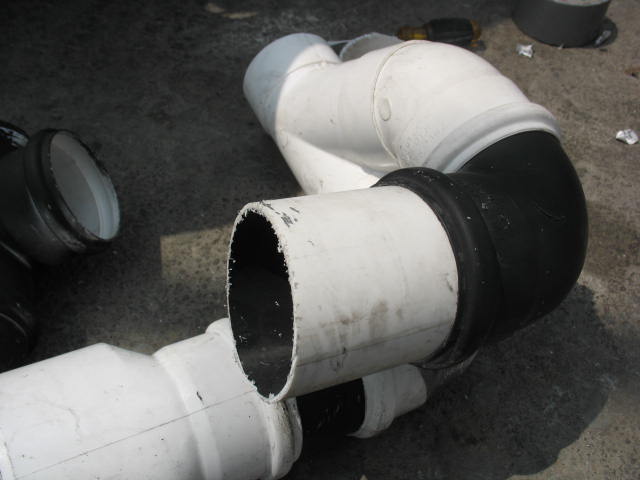

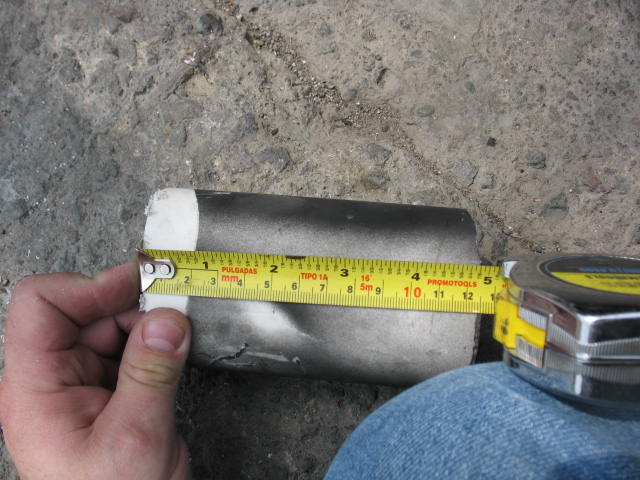

Now for the 'socks' with the left side requiring a 5 inch piece of 3 diameter PCV pipe.
Attached Thumbnails
08-04-07, 05:04 PM
Super Moderator
Thread Starter
Join Date: Apr 2004
Location: Miami, Florida
Posts: 17,246

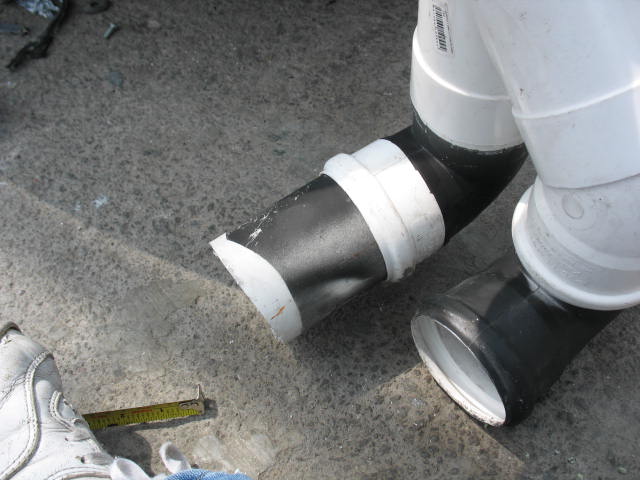

Fitting of the left 'sock'.
Attached Thumbnails
08-04-07, 05:06 PM
Super Moderator
Thread Starter
Join Date: Apr 2004
Location: Miami, Florida
Posts: 17,246

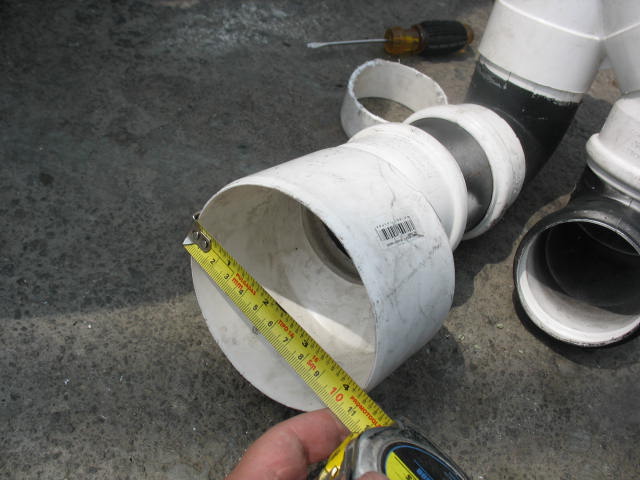

Now for the left 'shoe', which is a reductor piece of 4 to 3 inches.
Attached Thumbnails
08-04-07, 05:08 PM
Super Moderator
Thread Starter
Join Date: Apr 2004
Location: Miami, Florida
Posts: 17,246

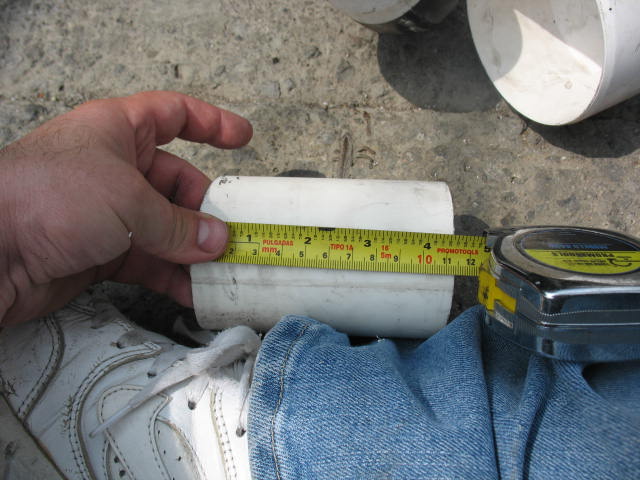

The 'right' sock of 4.5 inches of a 3 inch diameter PVC pipe.
Attached Thumbnails
08-04-07, 05:09 PM
Super Moderator
Thread Starter
Join Date: Apr 2004
Location: Miami, Florida
Posts: 17,246
Right 'sock' attached.
Attached Thumbnails
08-04-07, 05:10 PM
Super Moderator
Thread Starter
Join Date: Apr 2004
Location: Miami, Florida
Posts: 17,246

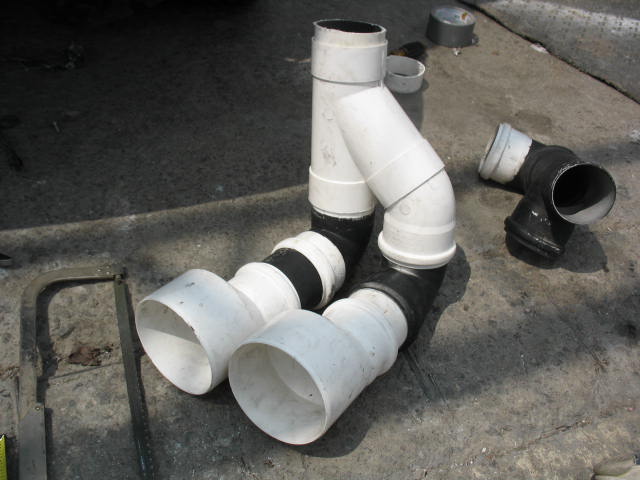

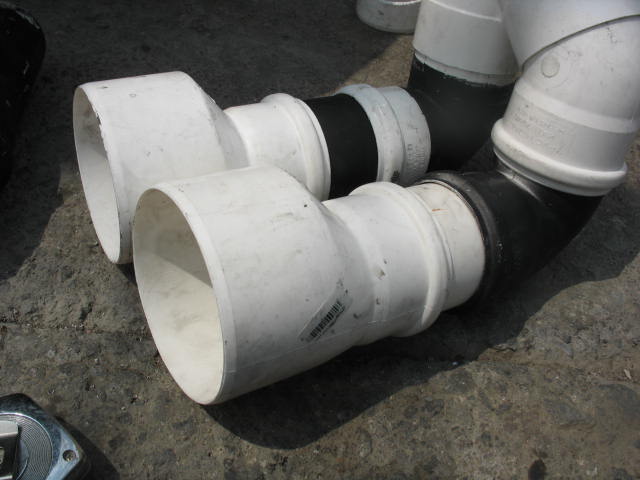

Right 'shoe' attached.
Attached Thumbnails
08-04-07, 05:12 PM
Super Moderator
Thread Starter
Join Date: Apr 2004
Location: Miami, Florida
Posts: 17,246

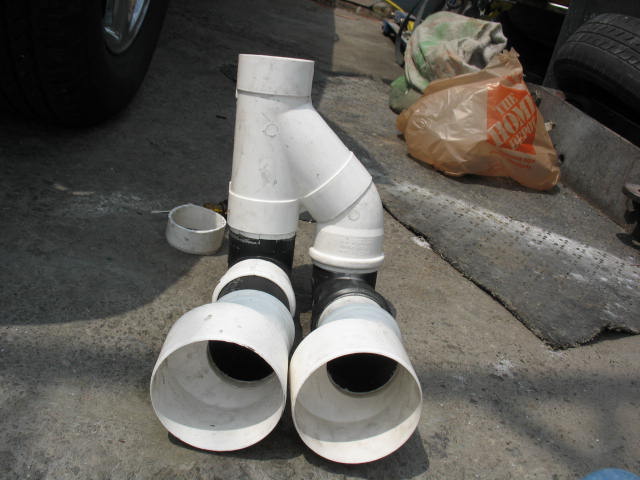

Now after trying it out, it was still a little tall at the top.
Attached Thumbnails
08-04-07, 05:13 PM
Super Moderator
Thread Starter
Join Date: Apr 2004
Location: Miami, Florida
Posts: 17,246

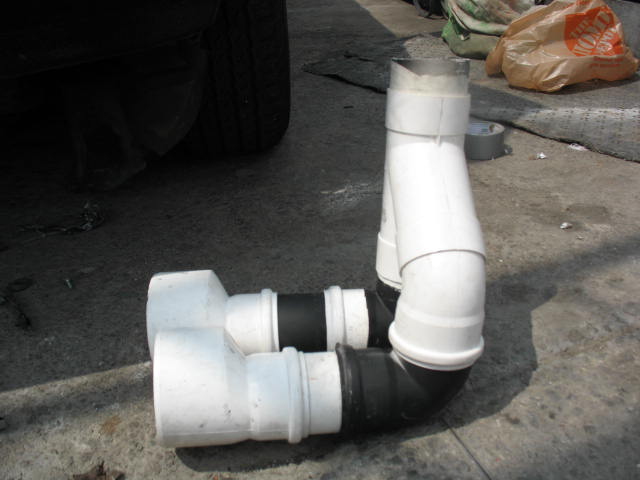

Before I did more cutting, thought I would show a side shot.
Attached Thumbnails
08-04-07, 05:15 PM
Super Moderator
Thread Starter
Join Date: Apr 2004
Location: Miami, Florida
Posts: 17,246
And a rear shot.
Attached Thumbnails
08-04-07, 05:17 PM
Super Moderator
Thread Starter
Join Date: Apr 2004
Location: Miami, Florida
Posts: 17,246

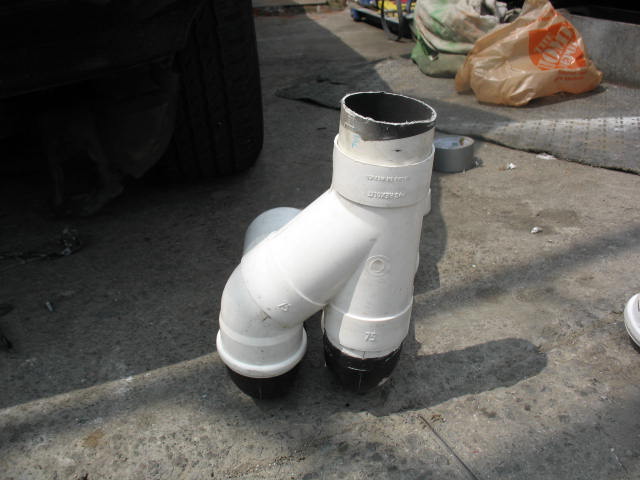

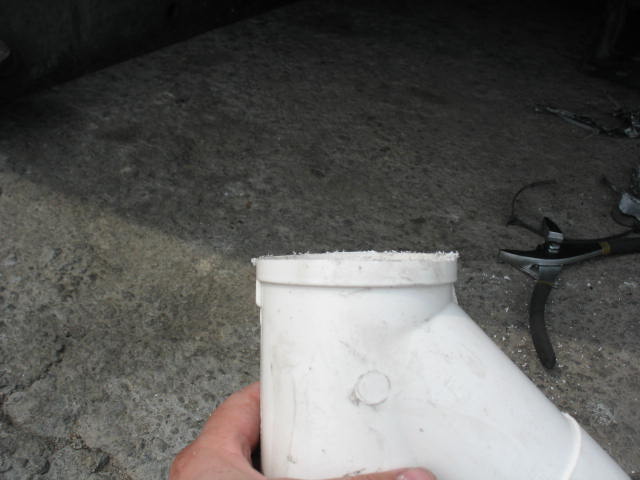

Time to go chopping again, we actually chopped off about 85% of the top.
